Lyophilizer Manufacturers Vacuum Function Freeze Dryer

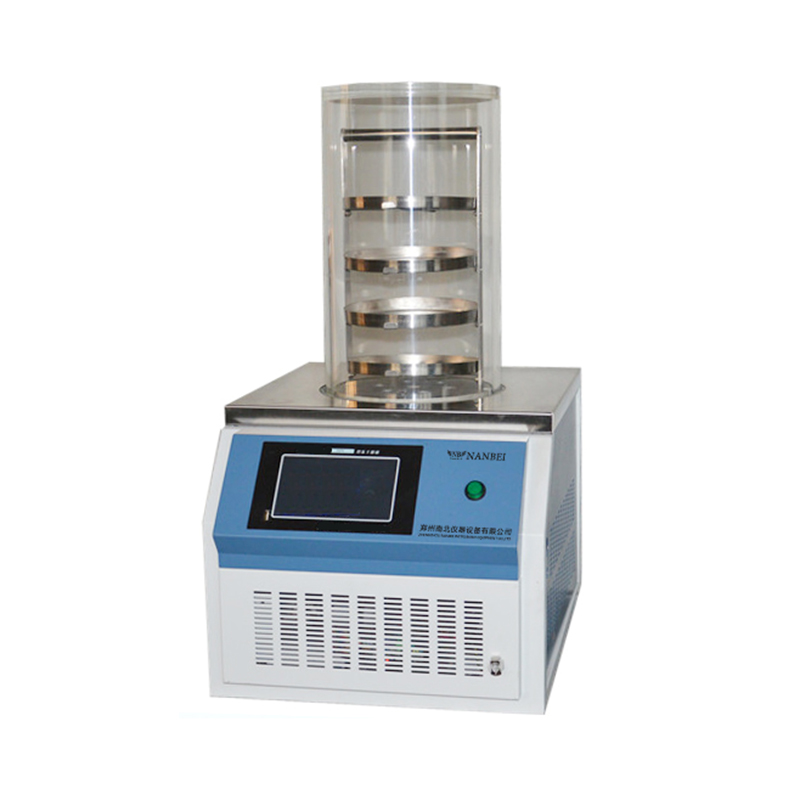

NB-10N Freeze Dryer
Characteristics:
●Accord with international standards of Green environmental friendly
● 7" True-color Touch Screen, Chinese English Bilingual Interface, display drying curve and history curve;
● U disk Can storage lyophilized data;
● Upload software can print curve;
● Embedded circuit design, 128 M FLASH, can save dozen times Lyophilized data;
●Large opening trap, no coil inside, with samples pre-freeze function
● Imported refrigeration compressor, low noise
● Cold trap and control panel were made by stainless steel, corrosion-resistant, easy to clean
● Transparent Bell type drying room, secure and ocular
● Stainless steel sample holder, common sample plate spacing adjustable
● Small size and easy to operate
● Nitrogen inflation valve within
Parameters of Freeze Dryer

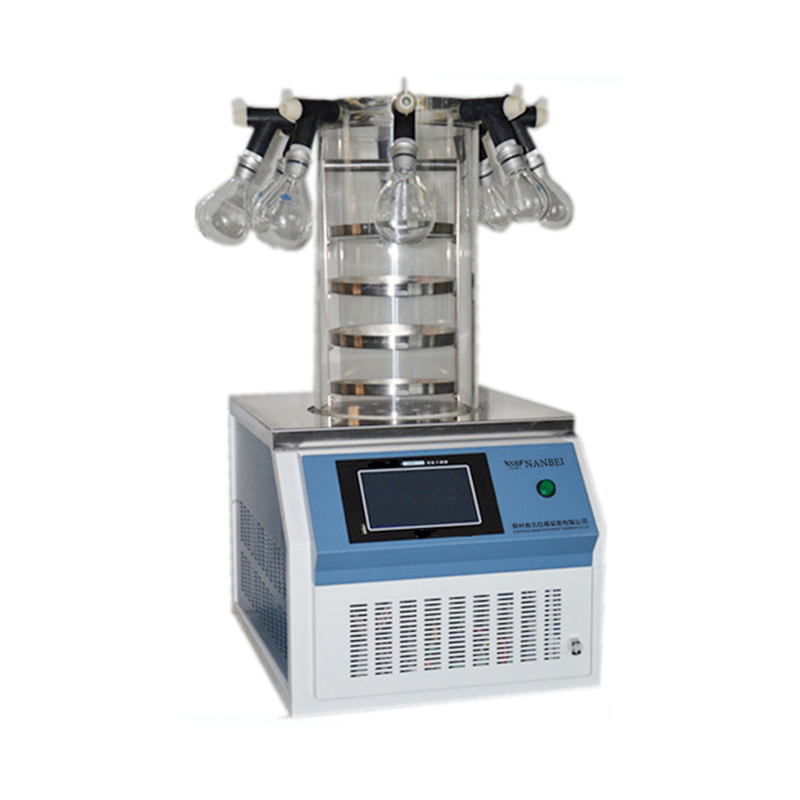

NB-12N Freeze Dryer
Characteristics:
●Accord with international standards of Green environmental friendly
● 7" True-color Touch Screen, Chinese English Bilingual Interface, display drying curve and history curve;
● U disk Can storage lyophilized data;
● Upload software can print curve;
● Embedded circuit design, 128 M FLASH, can save dozen times Lyophilized data;
●Large opening trap, no coil inside, with samples pre-freeze function
● Imported refrigeration compressor, low noise
● Cold trap and control panel were made by stainless steel, corrosion-resistant, easy to clean
● Transparent Bell type drying room, secure and ocular
● Stainless steel sample holder, common sample plate spacing adjustable
● Small size and easy to operate
● Nitrogen inflation valve within
Parameters:

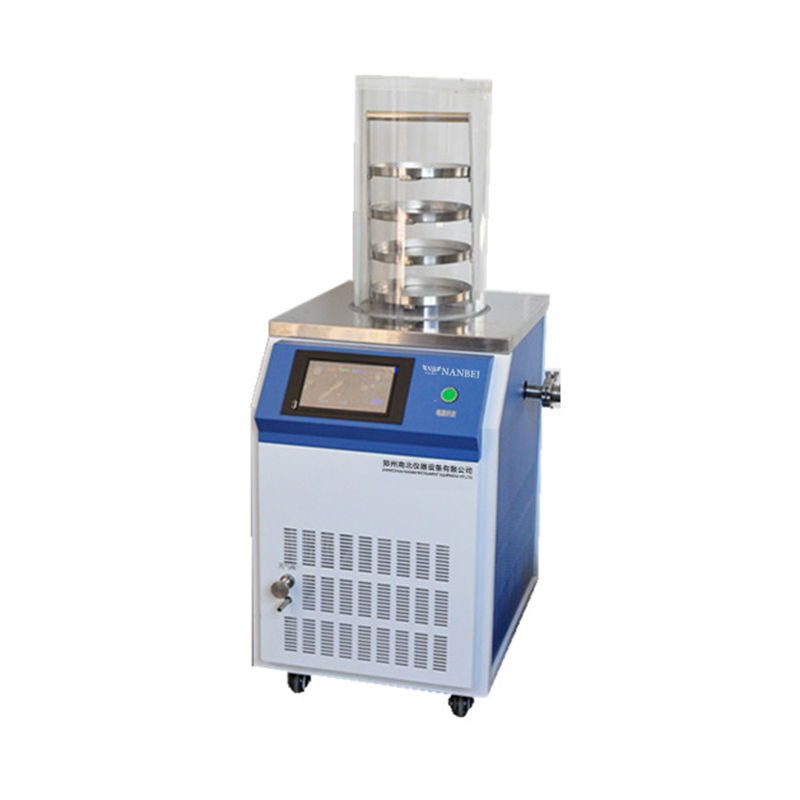

NB-18N Freeze Dryer
Characteristics:
●Accord with international standards of Green environmental friendly
● 7" True-color Touch Screen, Chinese English Bilingual Interface, display drying curve and history curve;
● U disk Can storage lyophilized data;
● Upload software can print curve;
● Embedded circuit design, 128 M FLASH, can save dozen times Lyophilized data;
●Large opening trap, no coil inside, with samples pre-freeze function
● Imported refrigeration compressor, low noise
● Cold trap and control panel were made by stainless steel, corrosion-resistant, easy to clean

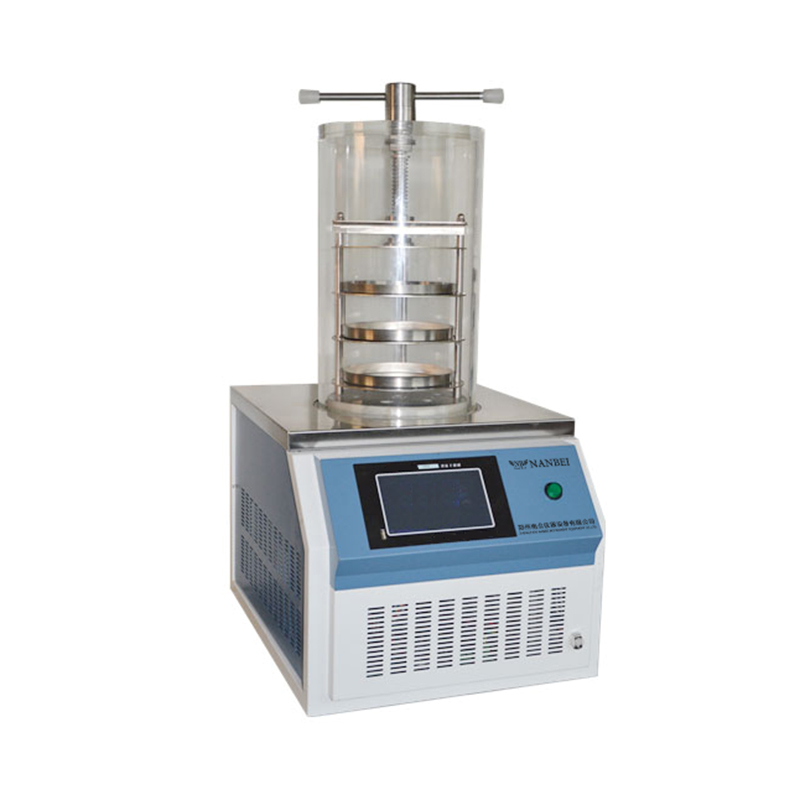

● Transparent Bell type drying room, secure and ocular
● Stainless steel sample holder, common sample plate spacing adjustable
● Small size and easy to operate
● Nitrogen inflation valve within
Parameters:

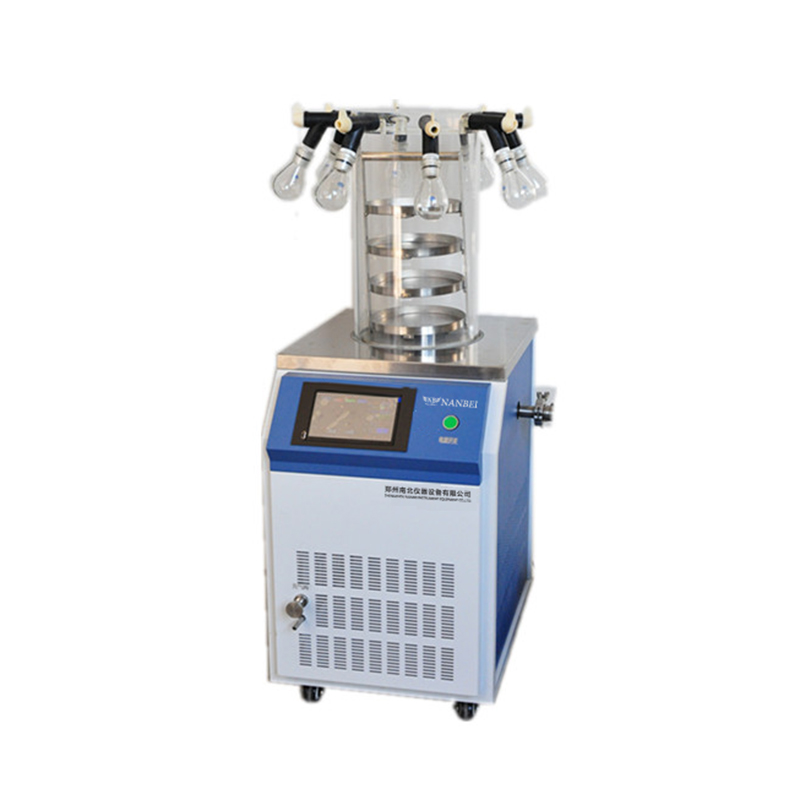

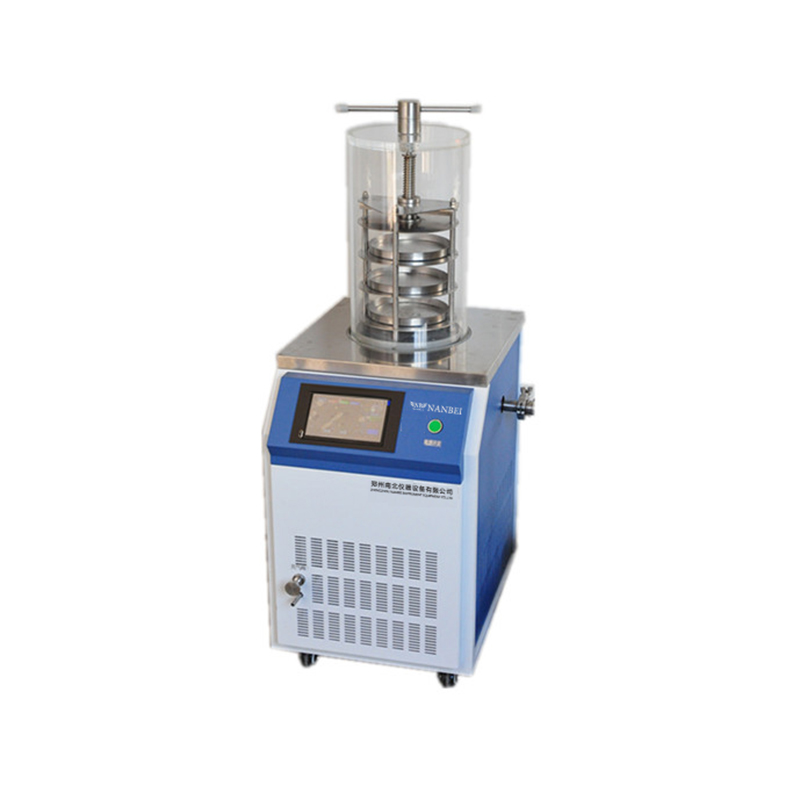

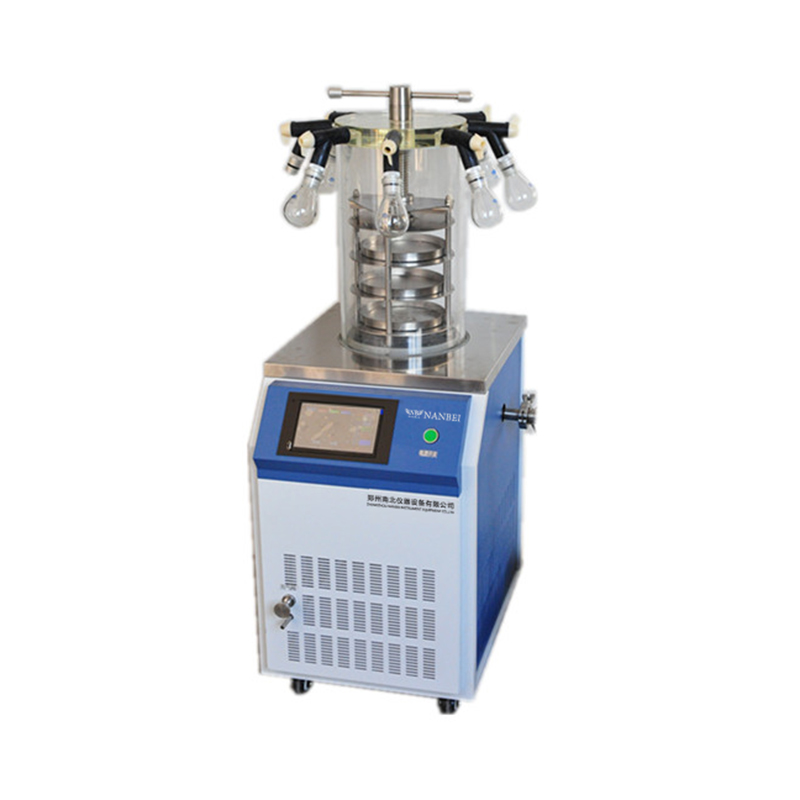

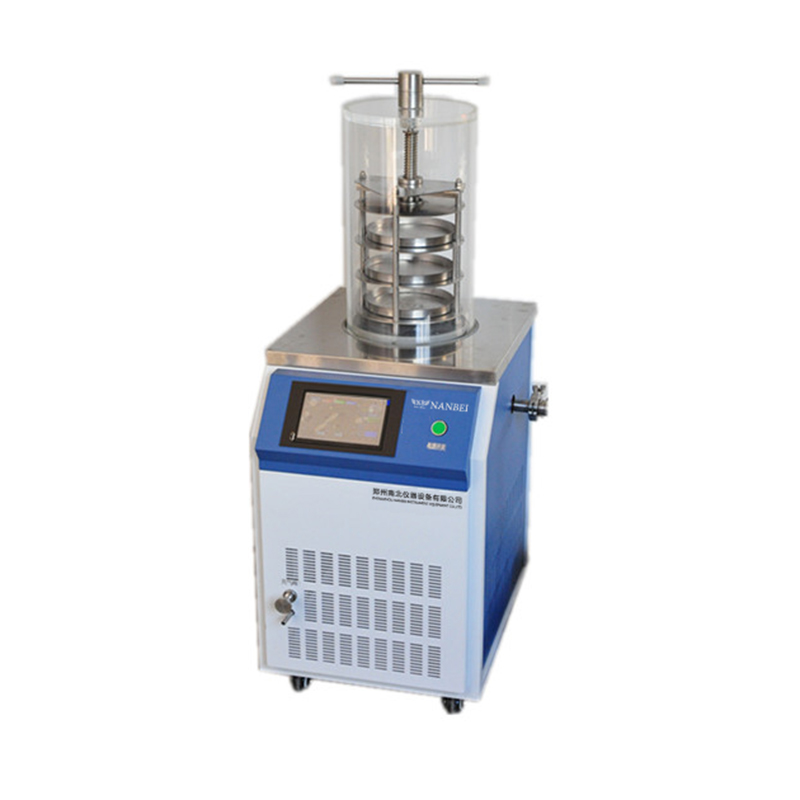

| NB-18N | Ordinary | Top-Press | Ordinary Multi-Manifolds | Top-Press Multi-Manifolds |
| No-load Temperature | <-56℃ | <-56℃ | <-56℃ | <-56℃ |
| Freeze Area | 0.18 m2 | 0.09 m2 | 0.18 m2 | 0.09 m2 |
| Plate Load Capacity | 2 L | 1 L | 2 L | 1 L |
| Ability to Capture Water | 6Kg | 6Kg | 6Kg | 6Kg |
| Vacuum Degree | <10Pa | <10Pa | <10Pa | <10Pa |
| Machine Dimension | W670×D530×H(800+450)mm | W670×D530×H(800+450)mm | W670×D530×H(800+450)mm | W670×D530×H(800+450)mm |
| Sample Tray Size | 4×Φ240mm | Ø 3×200 mm | 4×Φ240mm | Ø 3×200 mm |
| Power | 1300W | 1300W | 1300W | 1300W |
| Power Supply | 110V/60Hz or 220V/50Hz | 110V/60Hz or 220V/50Hz | 110V/60Hz or 220V/50Hz | 110V/60Hz or 220V/50Hz |
| interlayer spacing | 70 mm | 70 mm | 70 mm | 70 mm |
| Cold trap size | Ø270×410 mm | Ø270×410 mm | Ø270×410 mm | Ø270×410 mm |
| The number of Schering bottles | Ø22: 360 | Ø22: 270 | Ø22: 360 | Ø22: 270 |
| Ø16: 740 | Ø16: 560 | Ø16: 740 | Ø16: 560 |
| Ø12: 1320 | Ø12: 990 | Ø12: 1320 | Ø12: 990 |
| Picture |  |  |  |  |
Product Tags:
|
|

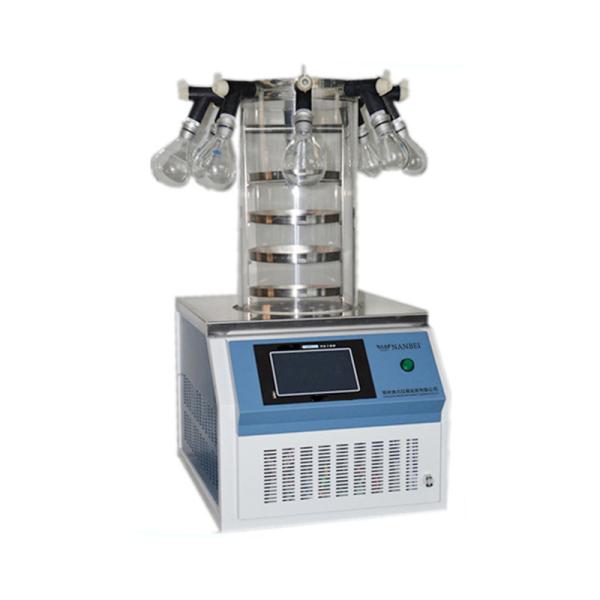

Lyophilizer Vacuum 1.5L -56C Lab Freeze Dryer Images
|
