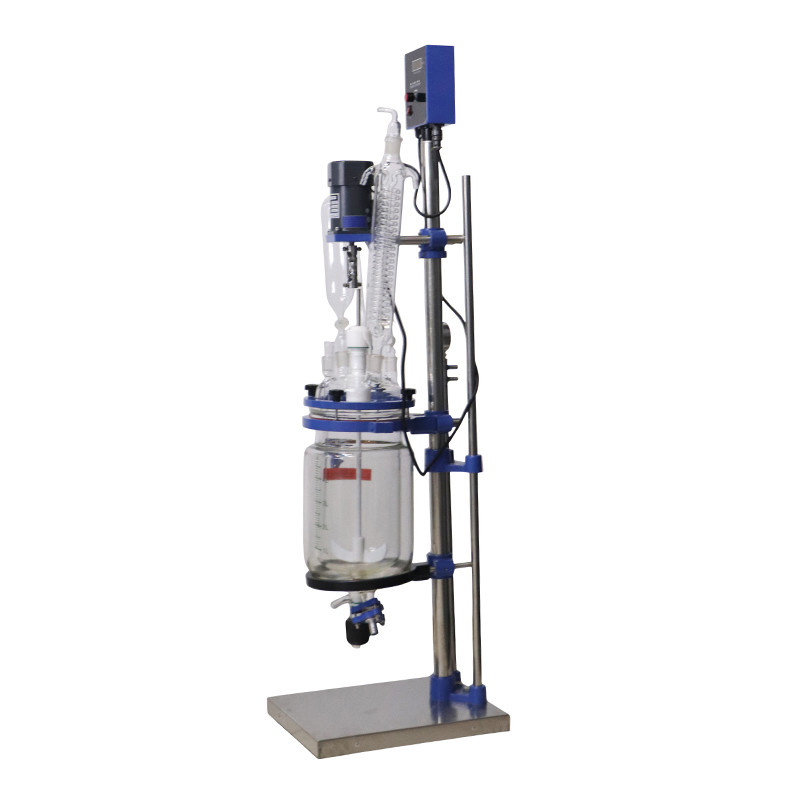

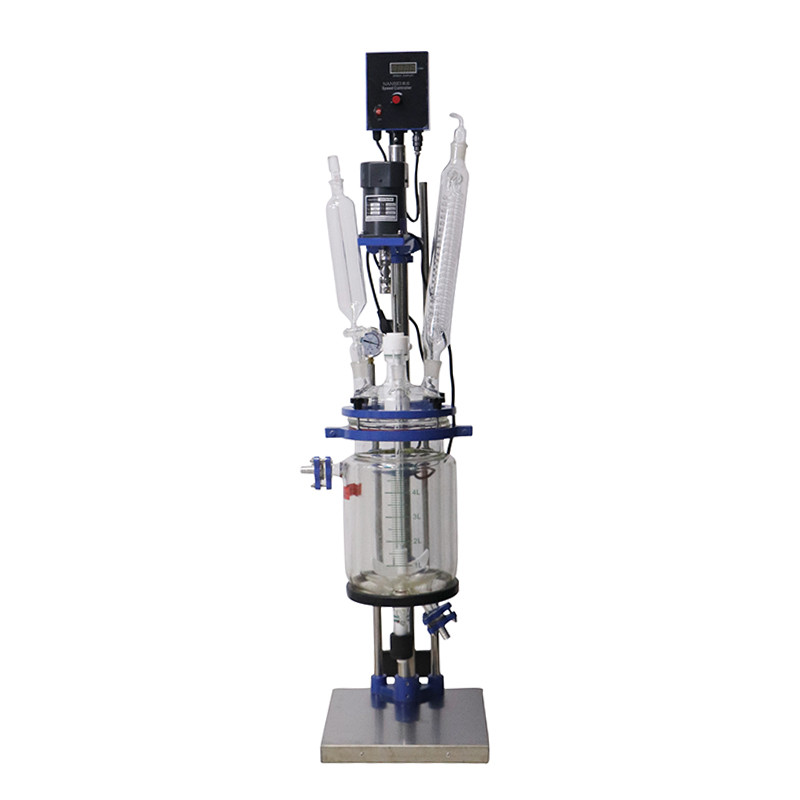

Description of 1-5L glass reactor
The double-layer glass reactor is mainly used for testing and production in the pharmaceutical, chemical, biological products and
other industries. This product is under the vacuum negative pressure condition, using the principle of constant speed stirring to
uniformly stir the raw materials, so that the material can fully react in the kettle body. The glass interlayer can be externally
connected with high temperature circulation equipment to heat, evaporate, separate and recover the materials in the kettle. And
other operations; external refrigeration cycle equipment can also be used to react to low temperature reaction in the kettle; if
there is heating and cooling in the material reaction process, external high and low temperature circulation devices can be used.
Moreover, the contact parts with materials are all made of high-temperature and corrosion-resistant high borosilicate glass and
polytetrafluoroethylene material, which is especially suitable for the reaction of easily decomposing denatured biological
products, and is not easy to react with various materials.

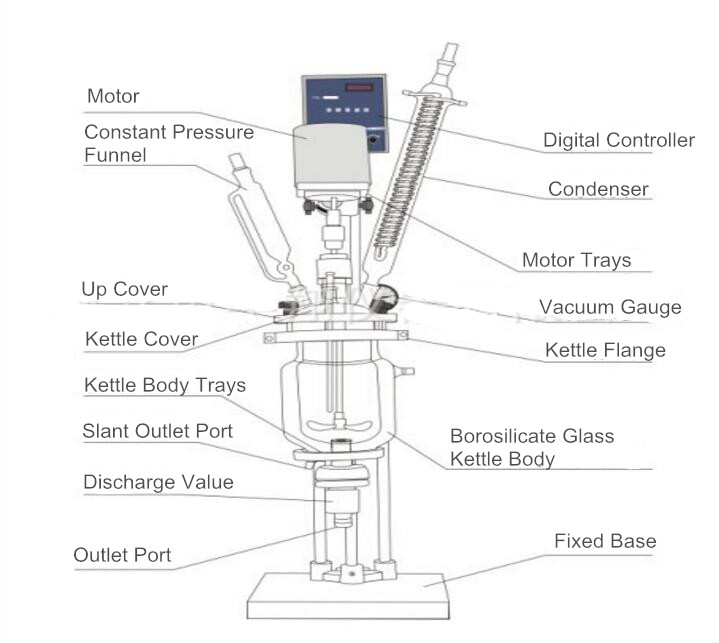

Working Principle of 1-5L glass reactor

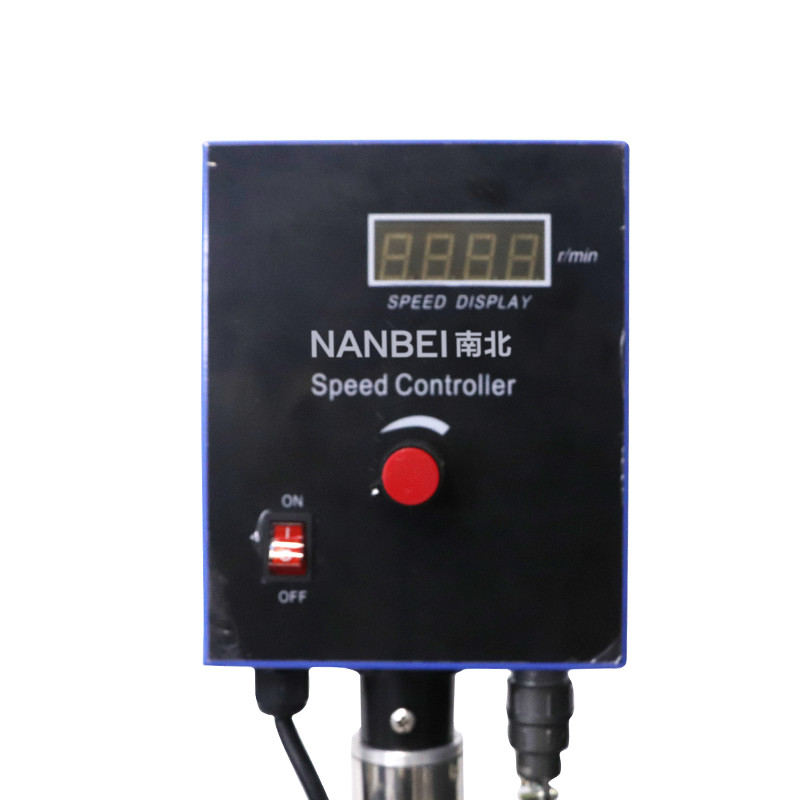

Under the vacuum negative pressure condition, the stirring rod is stirred at a constant speed by using the speed-regulating knob,
so that the material is fully reacted in the kettle body, and the heating or cooling reaction of the material in the kettle is
indirectly heated by the glass interlayer external heating or cooling device, and the reaction process is heated during the
heating process. The resulting solvent vapor is rapidly cooled, distilled or refluxed via a cooling coil of a glass condenser.
After the reaction is completed, the material can be quickly discharged through the oblique discharge valve.
The double-layer glass reactor has the main capacity of 1L, 2L, 3L, 5L, 10L, 20L, 30L, 50L, 100L, 150L,200L, all of which have the
function of lower discharge. More than 10 liters are equipped with universal casters for easy movement and The temperature display
function in the kettle.
It can be used together with the vacuum pump to improve the working efficiency; the cooling coil of the glass condenser can be
used together with the low temperature coolant circulating pump to improve the recycling efficiency. Please purchase the matching
equipment at the discretion of the customer. The kettle body interlayer can be equipped with heating, refrigeration equipment or
high and low temperature circulation devices according to the material reaction requirements.
| Model | NB-1 | NB-2 | NB-3 | NB-5 |
| Glass Material | GG-17 | GG-17 | GG-17 | GG-17 |
| Frame Material | 304 SUS | 304 SUS | 304 SUS | 304 SUS |
| Reaction bottle capacity | 1L | 2L | 3L | 5L |
| Jacketed Capacity | 0.4L | 0.5L | 0.6L | 0.8L |
| Flanged out of the oil circulation port | Low feed high outlet | Low feed high outlet | Low feed high outlet | Low feed high outlet |
| Reaction bottle cover | 5 | 5 | 5 | 5 |
| Discharger port distance to ground | 30mm | 30mm | 30mm | 30mm |
| Temp. range | -80-250℃ | -80-250℃ | -80-250℃ | -80-250℃ |

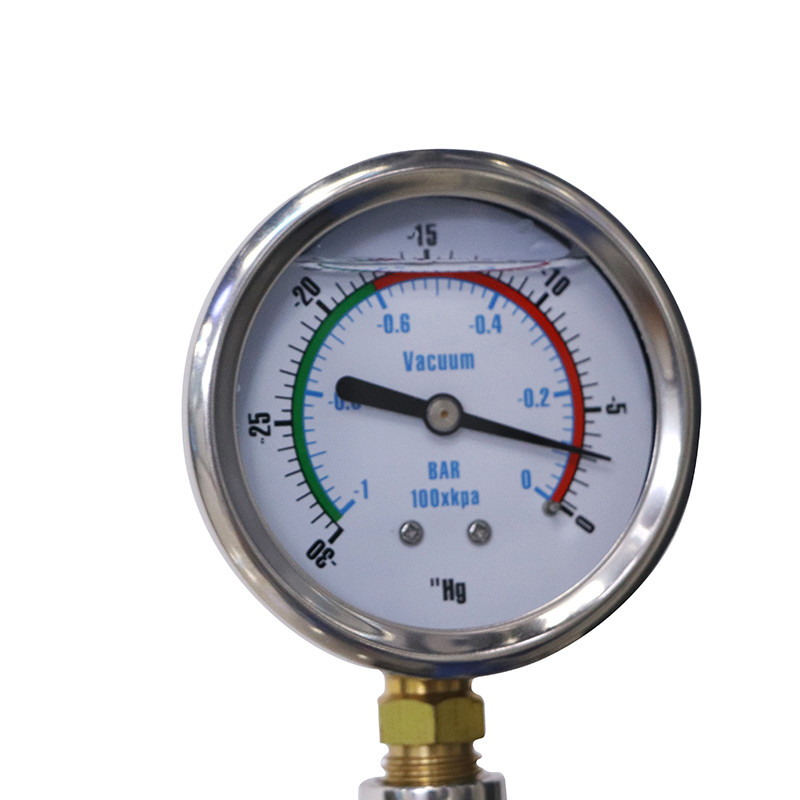

| Vacuum degreee | 0.098Mpa | 0.098Mpa | 0.098Mpa | 0.098Mpa |
| Stirring speed | 0-800rpm | 0-800rpm | 0-800rpm | 0-800rpm |
| Stirring diameter | 8mm | 8mm | 8mm | 8mm |
| Stirring power | 40W | 40W | 90W | 90W |
| Coltage(V/Hz) | 220V/50HZ | 220V/50HZ | 220V/50HZ | 220V/50HZ |
| Dimension(mm) | 350*345*1000 | 350*345*1000 | 350*410*1250 | 350*410*1250 |
| Plate size(mm) | 325*345 | 325*345 | 325*410 | 325*410 |
| Packign size(mm) | 1200*480*400 | 1200*480*400 | 1380*500*400 | 1380*500*400 |
| Packign weight(KG) | 32 | 32 | 38 | 38 |
